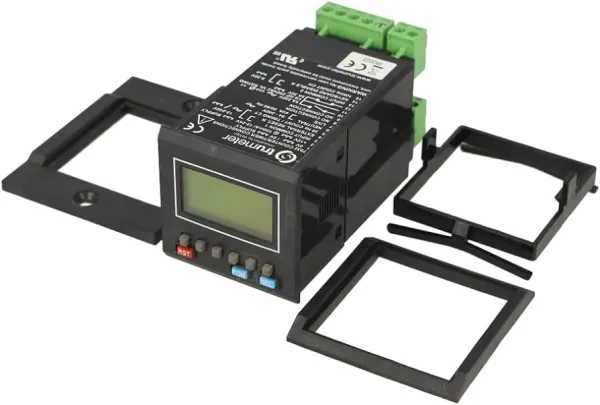

TRUMETER – 7932 MULTIFUNCTION COUNTER/TIMER, 6 DIGIT LCD BACKLIT, 1 PRESET, 10-30VDC / 85-265VAC SUPPLY

Buy Trumeter 7932  Counter and Timer Trumeter 7932 has a 6 digit LCD programmable preset counter or timer with pre-scaler and EEPROM data storage in an IP65 DIN case. The counter has 1 preset electronic counter and requires a voltage supply of 10V dc to 30V dc or 90V ac to 264V ac.  for the 7932 Datasheet.  for the 7932 manual. Features of the Trumeter 7932 The Trumeter 7932 is a 6 digit LCD programmable preset counter and timer with a pre-scaler and EEPROM data storage in an IP65 rated DIN case. This versatile count up or count down predetermining counter or timer with pre-scaler has a wide range of innovative and attractive features. Designed and built to the highest standards it offers both counting and timing functions in a single unit. The features of the 7932 are is has 1 preset relay. Can be for counting or timing and displays 6 digits. The count inputs have an optical isolator and can be sink to NPN or source to PNP. The count is on the main display and the set value is on the lower display. Reset can be remote, manual or automatic with a manual override option. All programming, reset and pre-setting the counter from the front panel although the keys can be remotely disabled from the rear of the unit. Specification of the Trumeter 7932 Requires a supply voltage of 85V ac to 265V ac or 10V dc to 26V dc at 100 mA. Auxiliary Output Supply 12V dc at 100 mA (when operating from AC supply). Display 2 rows of 6 digits LCD with yellow and green LED backlight. Upper row 7 mm high indicates count, lower row 4 mm (0.16in) high indicates the P1/P2 preset point. Also, Relay 1 Active annunciator. Back-light control programmable to always ON, always OFF or AUTO (ON for the 30s following the last key-press). Preset points with two user selectable preset points 1 – 999999. Disable the manual reset on installation or remotely reset. Remote reset contact closure or pulse (15 ms response time). Automatic reset programmable for automatic or Manual/Remote reset. Data retention 40 years minimum. Output relays contact connection SPDT. Operating temperature -10° to +60°C. Storage temperature -20°C to +70°C. Environmental protection IP65 rated when properly installed using the sealing gasket supplied (without bezel). Ordering information is Trumeter 7932 a 6 digit predetermining counter or timer.  to view Trumeter UK products.
